WF1700FD-000
Blank Wire Seal Flange Female 17.00″ Dish Head
Request a Quote for Price
Part ID: 5500015
Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Blank flanges close unused ports or custom modify

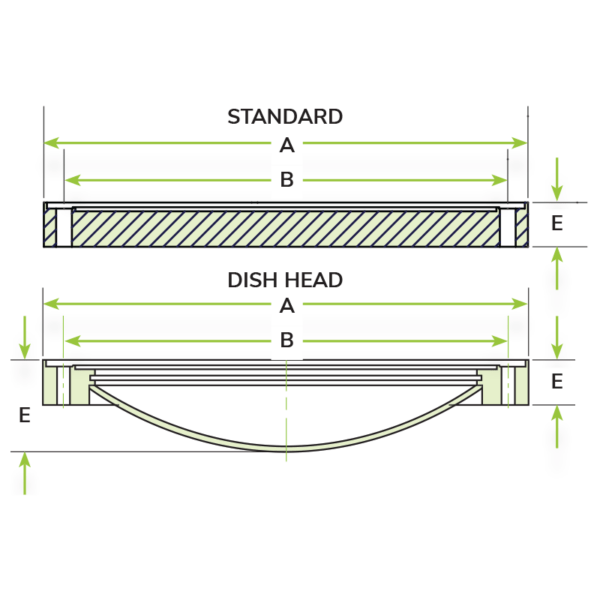

- Standard blank flanges are manufactured from solid stainless steel plate for highest sealing reliability
- Dish head blank flanges have a stainless steel disk welded onto the back of a bored flange. This option weighs less and costs less. Dish head blank flanges have a “-d” suffix on the Reference ID.
Specifications
- Flange: 304L Stainless Steel
- Sizes: outer diameter 12 3/8 inches up to 27 1/8 inches (for tubing diameter 10 inches up to 24 inches)
- Vacuum rated: UHV (approx. 1×10-13 Torr)
- Temperature range: -200°C up to 450°C
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
All dimensions are in inches unless otherwise specified.
