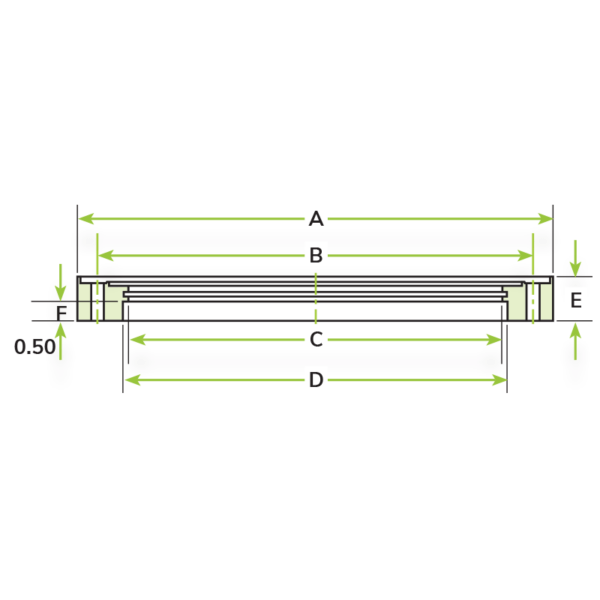

Attributes

A 17.25
B 15.72
C 13.75
D 14
E 1.13
F 0.5
Bolt Holes 36
Nominal Tube O.D. 14
Nominal Flange O.D. 17.25
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

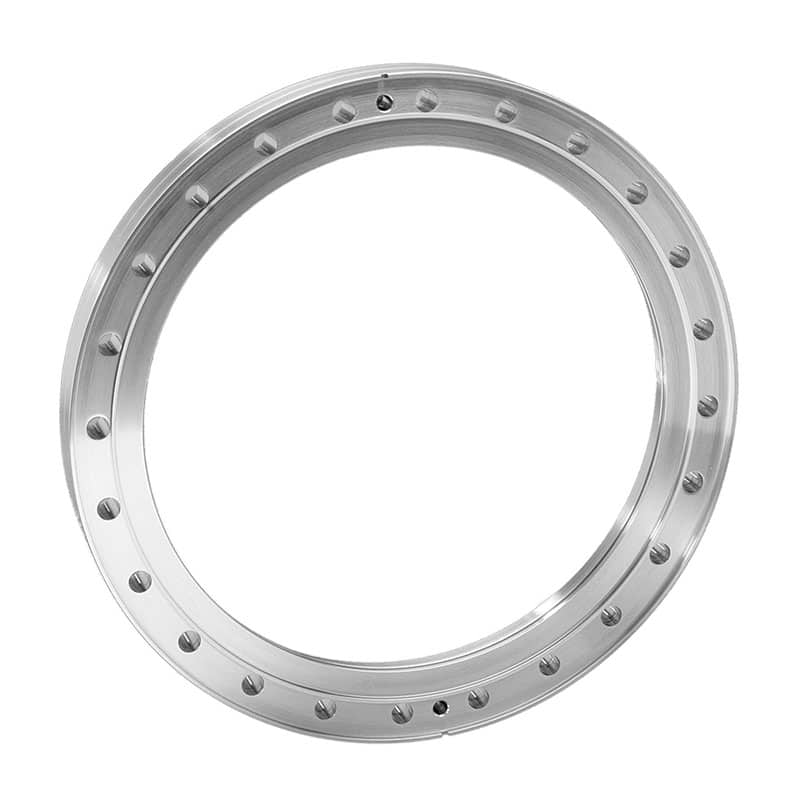

WF1700F-1400

Wire Seal Flange Female, Bored 17.00″ Standard

Request a Quote for Price

Part ID: 5500017











Features






  • Designed to fit standard inch tubing O.D.’s
    •

  • Self-aligning
    •

  • Internal weld
    •

  • Blank flanges close unused ports or custom modify
    •

  • Standard blank flanges are manufactured from solid stainless steel plate for highest sealing reliability
    •

  • Dish head blank flanges have a stainless steel disk welded onto the back of a bored flange. This option weighs less and costs less. Dish head blank flanges have a “-d” suffix on the Reference ID.
    •









Specifications






  • Flange: 304L Stainless Steel
    •

  • Sizes: outer diameter 12 3/8 inches up to 27 1/8 inches (for tubing diameter 10 inches up to 24 inches)
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 17.25



                    B 15.72



                    C 13.75



                    D 14



                    E 1.13



                    F 0.5



                    Bolt Holes 36



                    Nominal Tube O.D. 14



                    Nominal Flange O.D. 17.25



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
