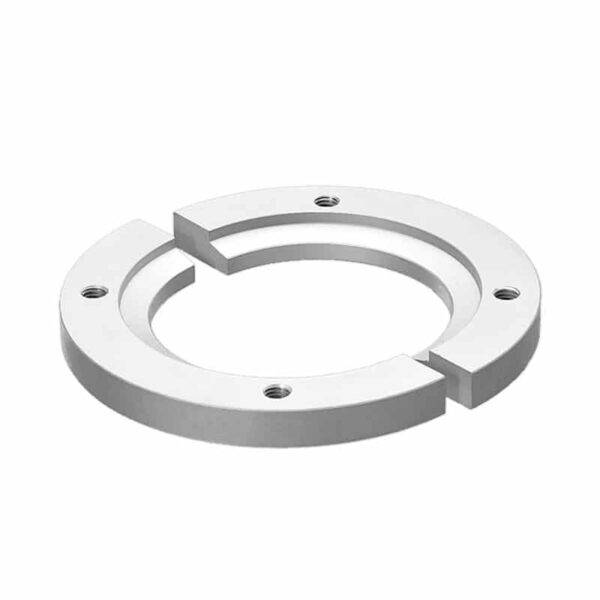

REPRESENTATIVE IMAGE

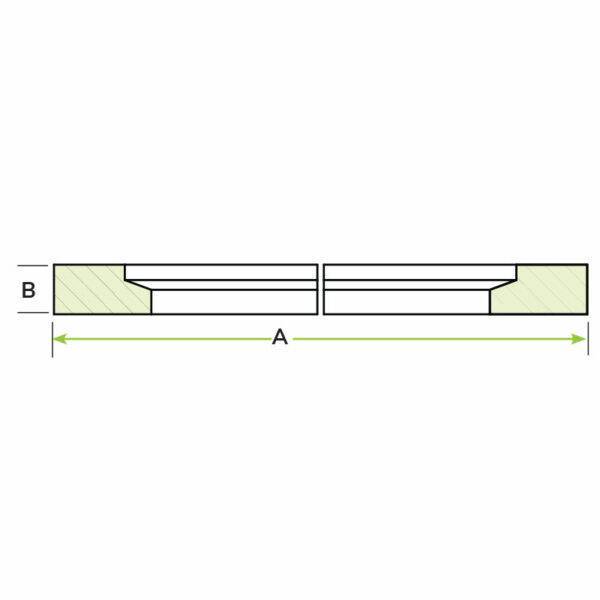

Attributes

Thickness 0.47
Outer Dimensions 6.5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF100-400-ABR

QF100 Adaptive Bolt Ring

$0.00

Available on backorder

Part ID: 4001088


Adaptive bolt rings allow vacuum users to convert directly from one style of ISO-LF fastening flange to another without the purchase of an adaptive fitting. This saves money and reduces the space needed to accomplish the flange adaptation within your system. The ANCORP adaptive ISO fastener can convert a bolted or claw clamp-style ISO-LF flange directly to a quick clamp flange for the same tubing diameter (e.g. an LF80-300-SF can adapt directly to a QF80-300-SF).

Features

  • High Vacuum Rated to 1×10-8 Torr
  • Compatible with all ISO standard vacuum flanges and fittings
  • Converts ISO-LF flanges to rotatable ISO-LFB flanges
  • O.D. and bolt pattern match ISO-LFB flanges

Specifications

  • Materials:
    • Body: Aluminum
