Attributes

Description CF212 Zero-Length Glass Viewport
Flange Size 2.12
View Diameter 0.63
3D CADLogin
DrawingLogin

CF212-ZLVP-0.625

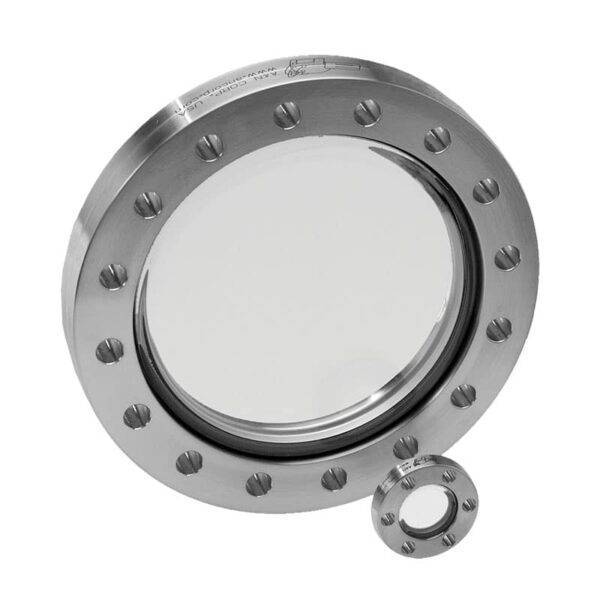

CF212 Zero-Length Kodial 7056 Borosilicate Glass Viewport

$175.00

3 in stock (can be backordered)

Part ID: 9110026







Features


  • Vacuum rating of 1×10-10 torr
    •
  • Maximum temperature: 350°C
    •
  • Minimum temperature: -20°C
    •
  • ConFlat flange
    •
  • Flange material is 304 stainless steel
    •

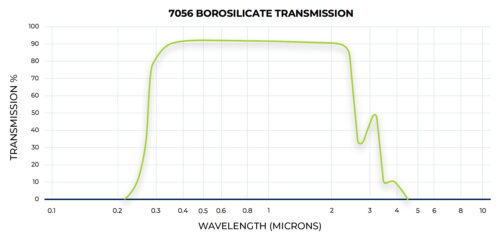

  • Viewing window is 7056 borosilicate glass
    •
  • Transition material is Kovar
    •
  • Max Rate of Temperature Change: 3°C per minute
    •
  • Do not expose to pressure above 1 atmosphere
    •
